New 22.5mm Joysticks

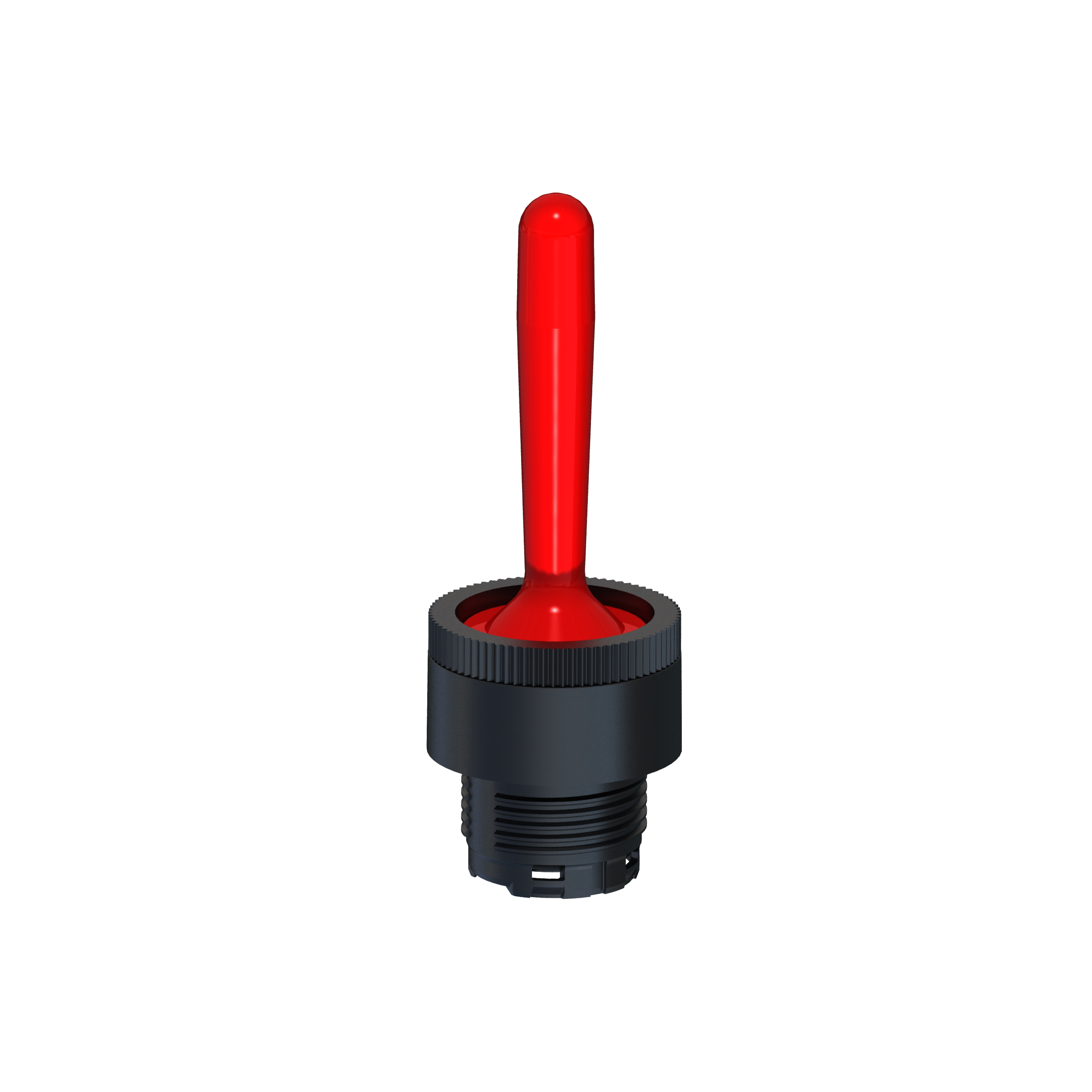

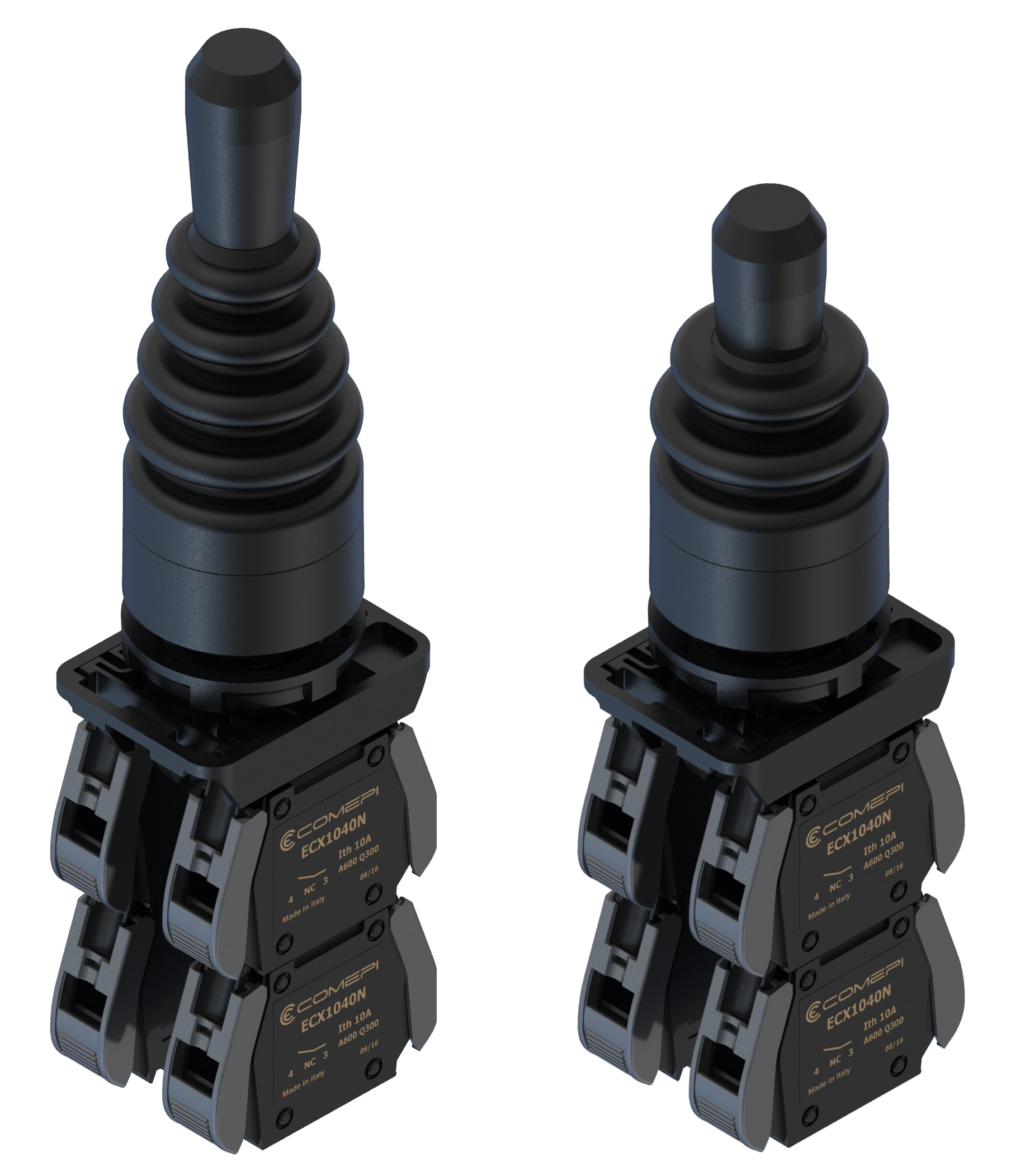

ITC introduces the ECX4500 line of panel Joysticks, for mounting in a 22.5mm cut-out. This family consists of 21 different models – 10 of them with a short lever (55mm total) and 10 with a long lever (79mm), plus a wobble-joystick.
They can be supplied with different operation modes:
- “Zero” plus one position, maintained or non-maintained
- “Zero” plus two positions, maintained or non-maintained
- “Zero” plus four positions, maintained or non-maintained
The 55 and 79mm joysticks are supplied with a mounting collar and the appropriate number of contact blocks, already mounted.
Features and specifications:
- Material: thermoplastic
- Lever colour: black
- IP Rating: IP65 (front)
- Operating Temperature: -25°C and +70°C
- Mechanical life: 300,000 operations
- Electrical characteristics:
- (UL/CSA) 600V (A600)
- 10A rated thermal current
- NC contacts with positive opening
- Approvals: cULus
For our Joystick catalog, click here.
