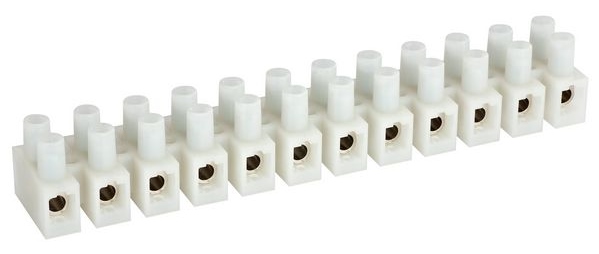

Production Terminal Strips for Economical Electrical Connections
These terminal strips come in five convenient sizes, designed for safe, economical wire connection in control panels, small distribution enclosures, machinery, appliances, etc.
The new series, due to improved production, packaging and logistics, are offered at a much reduced price compared to the previous models proposed by ITC.
Each strip has 12 poles (custom strips with different number of poles available). All strips can be easily cut to the required number of terminals, have raised base, wire protection (which eliminates the need for a ferrule or a crimp terminal).
The five models offered are respectively rated 20A – max 12AWG (pitch 8mm), 30A – max 10AWG (pitch 10mm), 30A – max 10AWG (pitch 12mm), 50A – max 8AWG (pitch 13.5mm) and 85A –max 4AWG (pitch 16.5mm). Ratings are as per cURus approval. CE mark, RoHS compliant.
For our catalog describing ITC’s production terminal strips click here.
