SLC Safety Door Interlock Switch
BERNSTEIN and ITC introduce a new generation of safety mechanical interlock switches ‘SLC’.

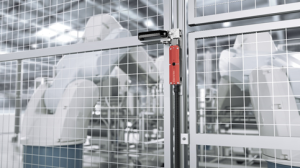

The SLC switches provide robust electro-mechanical locking of doors, covers, protection grilles, etc., while also remote monitoring access status and offering optional emergency opening from inside or outside the enclosure.

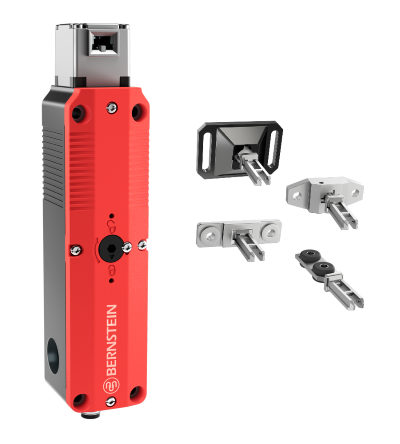

SLC switches feature a tough thermoplastic body and a metal head, designed to accept entry from 4 sides and the top (user-configurable) of the corresponding key (actuator).
There are 2 types of operation possible: power-to-unlock (the internal solenoid is powered to unlock) or power-to-lock (lock is released when power is cut). A tool operated safety control (release) by is present on the front (exterior of enclosure); this can be optioned as an accessory handle. Inside the enclosure, an optional escape release handle enables immediate opening in case of emergency.
A number of options are available (the 2 types of operation above, 24V AC/DC or 120V AC operated solenoid, various contact configurations). Accessories include emergency release handles and four types of key actuators.
Features and Specifications
- Flexible contact assembly
- Integrated manual release
- Five actuating positions
- Rotatable head (4 × 90°)
- Fail-safe locking system
- Optional emergency release
- Optional escape release
- Optional M12 connector
- 2 locking options:
- Spring-To-Lock
Locked by spring force
To unlock, the solenoid needs to be energized - Power-To-Lock
Locked by energized solenoid
To unlock, the energy needs to be switched off
Electrical data:
Contacts: 240VAC, 1.5A (B300); 24VDC (R300)
Solenoid: 24 V AC / DC or 120 V AC or 230 V AC
Operating temperature: -25 to +55 °C
Switching: 4 slow-action-contacts
IP Rating: IP67
Approvals: cCSAus (# 018950)
