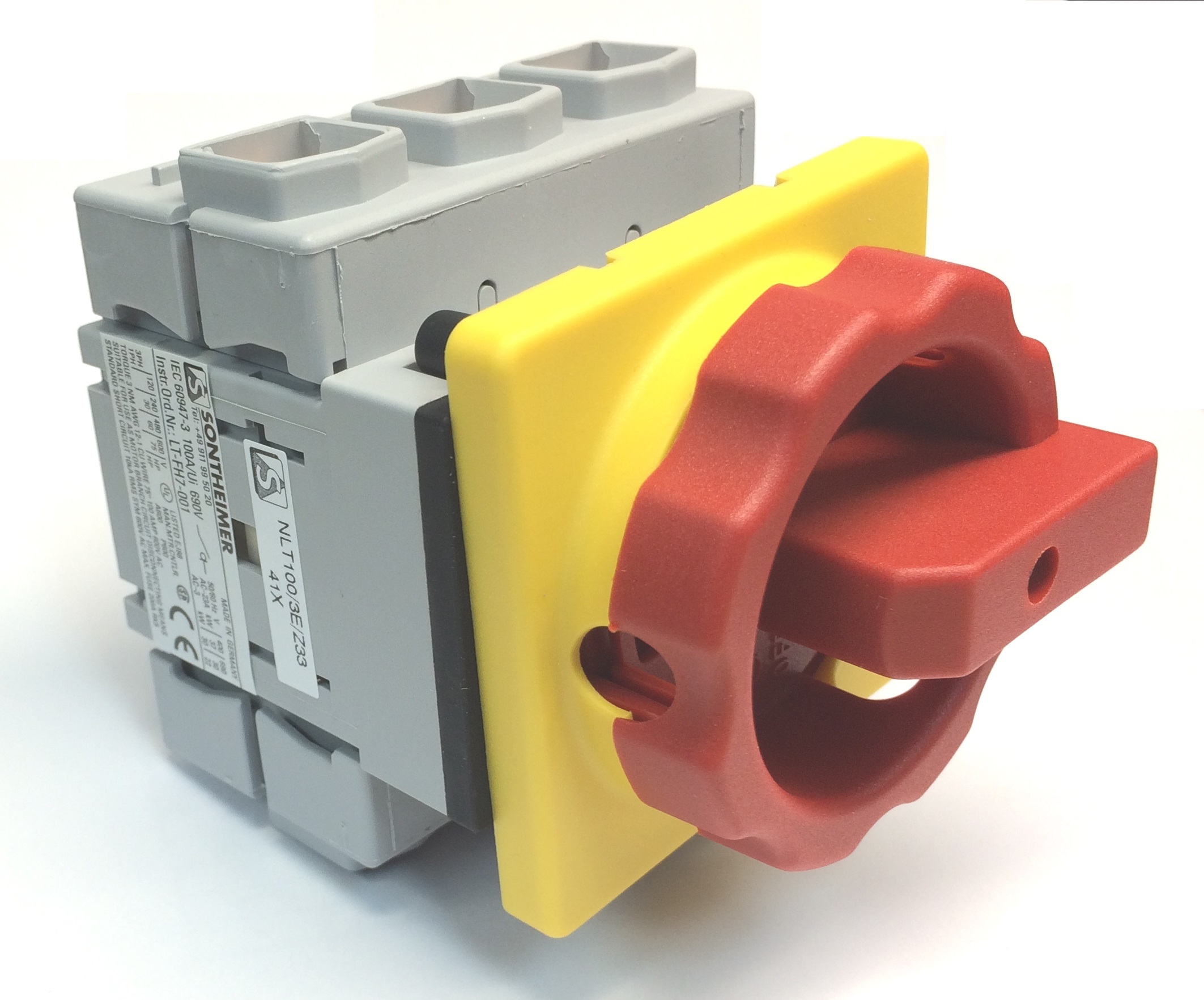

Door mount disconnect switch, 4 hole mounting, 100A, 3 pole

Part No:

LBS-NLT100/3E/Z33

Specification

Part No	LBS-NLT100/3E/Z33
Approvals	UL, CSA
Dimensions (mm)	A 66, A1 48, C 70, F 96, L 75
IP rating	IP64, IP65 with gasket Z1 (front), IP20 back
Motor rating, 3 phase, 240V	30HP
Motor rating, 3 phase, 480V	75HP
Motor rating, 3 phase, 600V	100HP
product_url	/docs/pdf/catalogs/3/EC-1705 Disconnect Switches.pdf
Short circuit rating	10KA short circuit rating at 600V, when protected by 200A class RK5 fuse
Product Packaging	1
