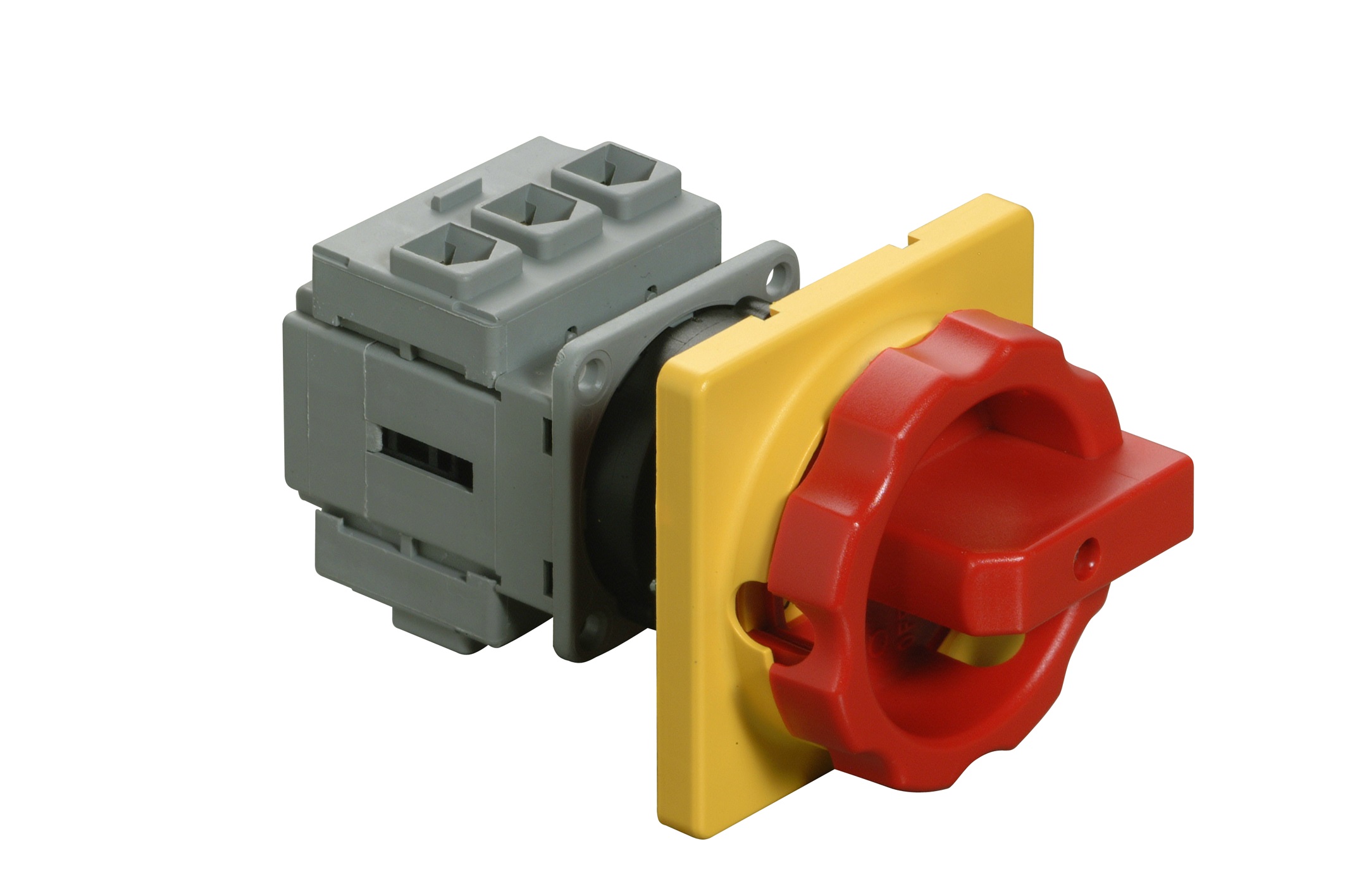

Door mount disconnect switch, central hole mounting, 63A, 3 pole, Z33 handle

Part No:

LBS-NLT63/3ZM/Z33

Specification

Part No	LBS-NLT63/3ZM/Z33
Approvals	UL, CSA
Dimensions (mm)	A 66, C 80, F 83, L 84
IP rating	IP64, IP65 with gasket Z1 (front), IP20 back
Motor rating, 3 phase, 240V	15HP
Motor rating, 3 phase, 480V	40HP
Motor rating, 3 phase, 600V	50HP
product_url	/docs/pdf/catalogs/3/EC-1705 Disconnect Switches.pdf
Short circuit rating	5 kA short circuit rating at 600V, when protected by 175A RK5 fuse or by a combination motor controller rated max. 50hp at 600Vac
Product Packaging	1
