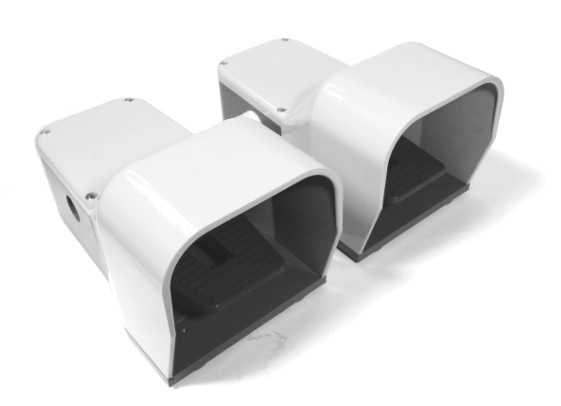

Double Foot Switch, free movement, 2 (NO+NC) snap contacts, grey guard

Specification

Part No	PD1123/V0
Contact Configuration	2 (NO+NC) snap action contacts per foot switch
Rated impulse withstand kV	6 kV
product_url	https://www.itcproducts.com/docs/pdf/catalogs/3/EC-1857 Foot switches.pdf
Number of Operations	3,00,00,000
Material (base)	ABS UL940V0
IP rating	IP65
Contact type	Positive opening (IEC 60947-5-1)
Guard	No
Ambient temperature	-10 C to +70 C
Connection type	3.5 mm screw connection – captive head clamp
Conductor size solid wire	0.75 – 2.5mm2 (18-14AWG) Use of a ferrule recommended for stranded wire
Class of utilization	AC-15 (240V / 3A) – DC-13
Cable entry gland	Pg16 – internal strain relief provided
Approvals	CSA 066746 – UL E189258
Rated Voltage/Current CSA	300VAC 25A
Storage temperature	-30 C to + 80 C
Product Packaging	1
