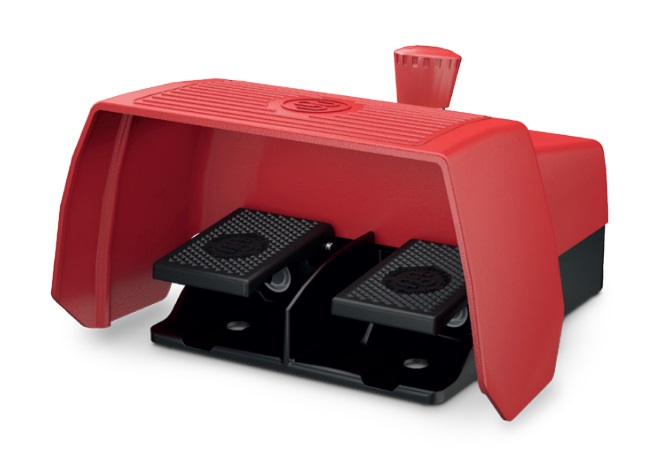

Double foot switch with emergency stop button, metal, 2NO+2NC slow action contacts, with guard

Specification

Part No	BE616.2720.700
Contact Configuration	2NO+2NC slow action contacts per foot switch
Rated impulse withstand	4 kV
Protection class	I
product_url	https://www.itcproducts.com/docs/pdf/catalogs/3/EC-1857 Foot switches.pdf
Number operations	10,00,000
Material (enclosure and Guard)	Cast aluminum, pedal – thermoplastic
Guard	Cast aluminum
Contact type	Positive opening (IEC 60947-5-1)
Approvals	CSA 018950
IP rating	IP65 (may vary with model)
Conductor size solid wire	0.5-1.5mm2 (20-16AWG)
Class of utilization	AC – 15 (240V / 3A)
Cable entry gland	M20x1.5
Ambient temperature	-30 C to +80 C
Rated thermal current IEC	10A
Rated Voltage/Current CSA	300V AC 25A – 2HP
Standards	VDE 0660 T100, DIN EN 60947-1, IEC 60947-1 / VDE 0660 T200, DIN EN 60947-5-1, IEC 60947-5-1
Storage temperature	-30 C to + 80C
Switching frequency	50/minute
Weight with Guard	2.6 kg
Product Packaging	1
