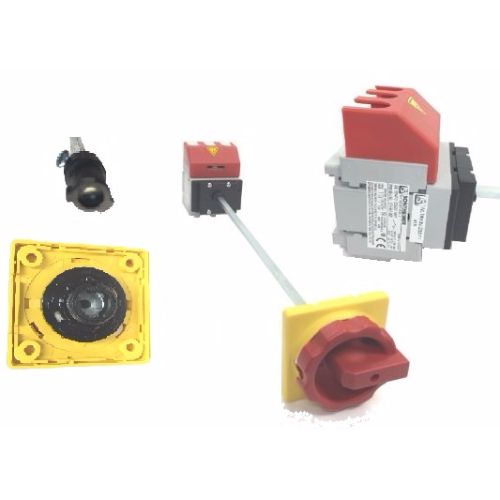

Panel mount disconnect switch with 300mm shaft and standard red/yellow rotary handle ‘Code 71’

Part No:

LBS-NLT63/3V/Z33/71

Specification

Part No	LBS-NLT63/3V/Z33/71
Approvals	UL, CSA
Dimensions (mm)	A 66, A1 48, C 60, F 83, L1 59
IP rating	IP54, IP65 with gasket Z1 (front), IP20 back
Motor rating, 3 phase, 240V	15HP
Motor rating, 3 phase, 480V	40HP
Motor rating, 3 phase, 600V	50HP
product_url	/docs/pdf/catalogs/3/EC-1705 Disconnect Switches.pdf
Short circuit rating	5 kA short circuit rating at 600V, when protected by 175A RK5 fuse or by a combination motor controller rated max. 50hp at 600Vac
Product Packaging	1
