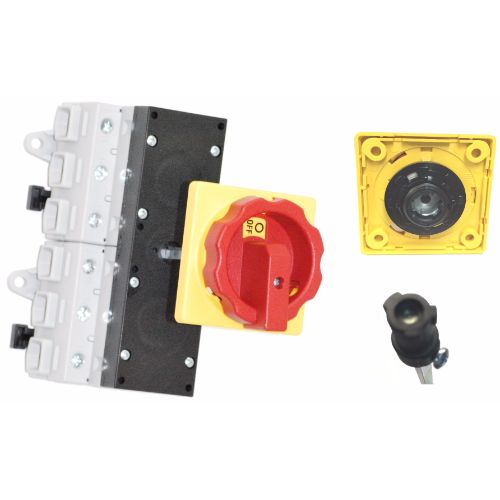

Panel mount disconnect switch with 300mm shaft and standard red/yellow rotary handle ‘Code 71’

Part No:

LBS-NLT100/6V/Z33/71

* Special order – 6 pole versions may be available from stock

Specification

Part No	LBS-NLT100/6V/Z33/71
Approvals	UL, CSA

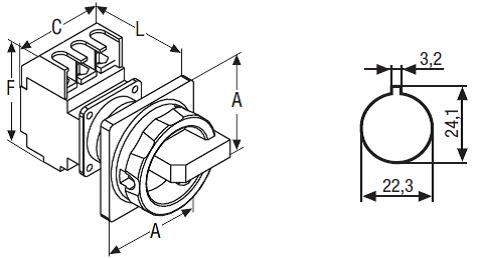

Dimensions (mm)	A 66, A1 48, C 141, F 96, L1 75
IP rating	IP54, IP65 with gasket Z1 (front), IP20 back
Motor rating, 3 phase, 240V	30HP
Motor rating, 3 phase, 480V	75HP
Motor rating, 3 phase, 600V	100HP
product_url	/docs/pdf/catalogs/3/EC-1705 Disconnect Switches.pdf
Short circuit rating	10KA short circuit rating at 600V, when protected by 200A class RK5 fuse
Product Packaging	1
