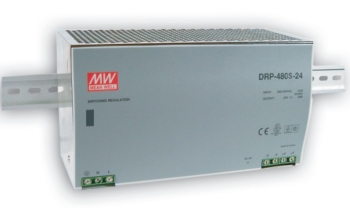

Switching DIN Rail Mount Power Supply 110-240VAC (selectable) to 24VDC, 20A

Part No:

DRP-480S-24

Specification

Part No	DRP-480S-24
Approvals	cURus/cULus
Current Range	0-20A

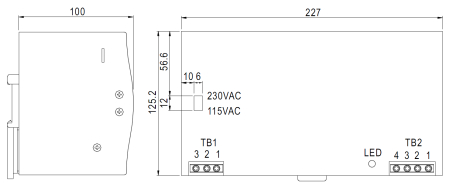

Dimensions	227125.2100mm
Efficiency	0.89
Input Inrush Current	27A/115VAC
Input Voltage Range	90-132VAC
Output DC Voltage	24V
product_url	/docs/pdf/catalogs/3/EB-2703-0 Power Supplies DIN.pdf
Protection Overload	105-150%
Rated Current	20A
Rated Power	480W
Weight	2.6Kg
Product Packaging	1
