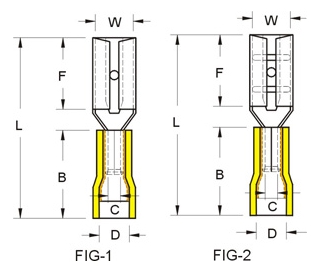

Vinyl insulated miniature female disconnect AWG26-22 2.8x0.8mm. yellow

Vinyl insulated miniature female disconnect AWG26-22 2.8x0.8mm. yellow - Image 2

Vinyl insulated miniature female disconnect AWG26-22 2.8×0.8mm. yellow

Part No:

314.001

Vinyl insulated miniature female disconnect AWG26-22 2.8×0.8mm. yellow

Download Catalog
SKU: 314.001 Category: Uninsulated miniature crimp term. 26-22AWG

Specifications

Specification

Part No	314.001
barrel i.d. "d1" mm	1
barrel o.d. "D" mm	2.2
Material, insulation	Polyamide (Nylon)
Material, terminal	brass, tin plated
Nominal wire section AWG	26-22
Nominal wire section mm2	0.25-0.5
product_url	/docs/pdf/catalogs/4/EC-1904 – Wire Termination.pdf
Tab size in.	.110"x.032"
Tab size mm	2.8×0.8mm
Product Packaging	20
